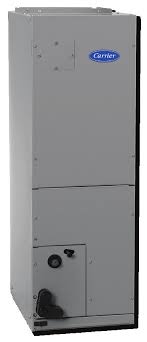

38CKM-018X/FB4CSL018L0 is a 1.5 TR (16,150Btu/h) ducted split system unit with a power supply of 220/240-1-50 for both indoor and outdoor, total system power input of 1,842 W, total system current of 9.2 A, and energy efficiency ratio (EER) of 8.77 Btu/W-h. The indoor fan motor type is an ECM motor, its dimensions are 363 x 560 x 1084 mm, and its net weight is 51 kg. The outdoor compressor’s type is scroll, its dimensions are 654 x 654 x 642mm, and its net weight is 54.2 kg. Refrigerant type is R410A.
Specifications:
- Unit Size (TR): 1.5
- Nominal Cooling Capacity (Btu/h): 16,150
- Energy Efficiency Ratio/EER (Btu/W-h): 8.77
- Power Supply: 220/240V/1Ph/50Hz
- Total System Power Input (W): 1,842
- Total System Current (A): 9.2 A
- Nominal Air Flow (L/s): 290
- Refrigerant Type: R-410A
- Indoor Fan Motor Type: Multi-tap ECM
- Compressor Type: Scroll
- Indoor Unit Dimensions (mm): 363 x 560 x 1084
- Indoor Unit Net Weight (kg): 51
- Outdoor Unit Dimensions (mm): 654 x 654 x 642
- Outdoor Unit Net Weight (kg): 54.2
