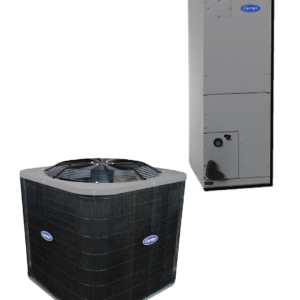

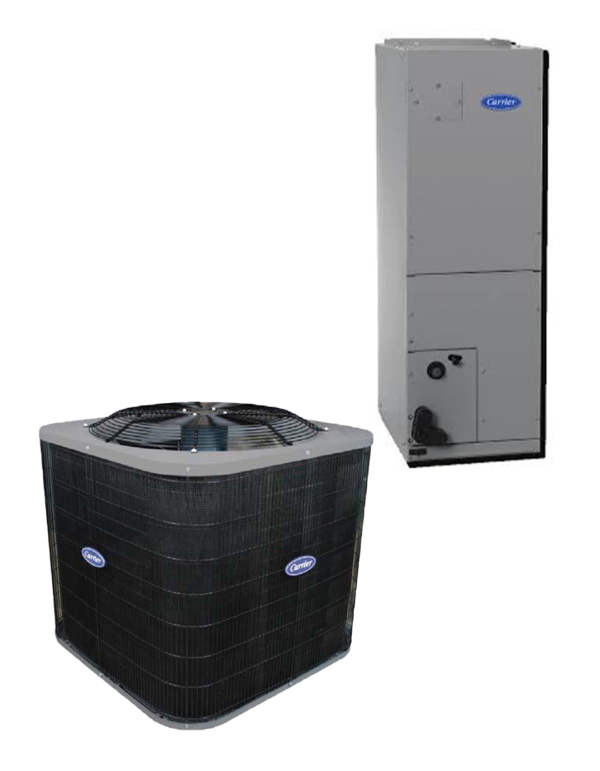

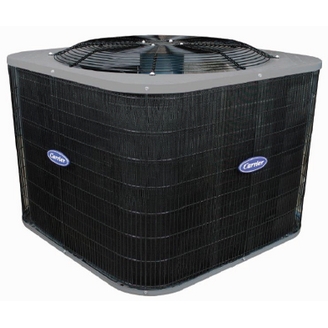

38CKM-036X/FB4CSL036L0 is a 3 TR (31,900 Btu/h) ducted split system unit with a power supply of 220/240V~1-50Hz for indoor. The outdoor unit operate with a power supply of 220/240V~1-50Hz and 380/400V~3-50Hz, total system power input of 3,582 W, total system current of 18.7 A, and energy efficiency ratio (EER) of 8.91 Btu/W-h. The indoor fan motor type is an ECM motor, its dimensions are 536 x 560 x 1260 mm, and its net weight is 71 kg. The outdoor compressor’s type is scroll, its dimensions are 792 x 792 x 718 mm, and its net weight is 77.4 kg. Refrigerant type is R410A.
Specifications:
- Unit Size (TR): 3
- Nominal Cooling Capacity (Btu/h): 31,900
- Energy Efficiency Ratio/EER (Btu/W-h): 8.91
- Power Supply: 220/240V~1-50Hz – 380/400V~3-50Hz
- Total System Power Input (W): 3,582
- Total System Current (A): 18.7
- Nominal Air Flow (L/s): 562
- Refrigerant Type: R-410A
- Indoor Fan Motor Type: Multi-tap ECM
- Compressor Type: Scroll
- Indoor Unit Dimensions (mm): 536 x 560 x 1260
- Indoor Unit Net Weight (kg): 71
- Outdoor Unit Dimensions (mm): 792 x 792 x 718
- Outdoor Unit Net Weight (kg): 77.4
