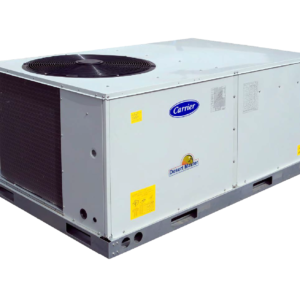

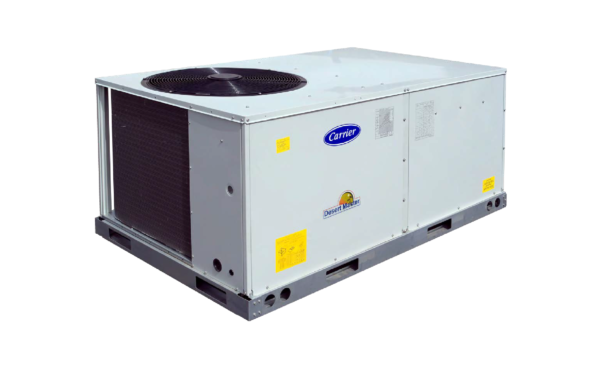

50TCMD09A9 is a 8.5-TR rooftop packaged unit designed for cooling only. It has a cooling capacity of 81,000 Btu/h (24 kW) and requires a power supply of 400V/3Ph/50Hz. The total system power input for cooling is 9,760 W. The unit has an EER of 8.30 Btu/W-h, and a COP of 3.49, a total system current of 16.17 A, and a standard airflow of 3,400 CFM. It features two scroll compressors, uses R410A refrigerant, and has a sound rating of 85.7 dBA. The net operating weight is 388 kg, and the dimensions are 2238 x 1510 x 1253 mm. The drainpipe connection size is 3/4″.
Specifications:
- Unit Size: 8.5 TR
- Cooling Capacity: 81,000 Btu/h
- Power Supply: 400V/3Ph/50Hz
- Total System Power Input: 9,760 W
- EER: 8.30 Btu/W-h
- Total System Current: 16.17 A
- Standard Airflow: 3,400 CFM
- Compressor Type/Type: 2 / Scroll
- Refrigerant Type: R410A
- Sound Rating: 85.7 dBA.
- Net Operating Weight: 388 kg
- Dimensions: 2238 x 1510 x 1253 mm
- Pipe Connection Size: 3/4″
- Compressor Type: 2 / Scroll
- Refrigerant Type: R410A
