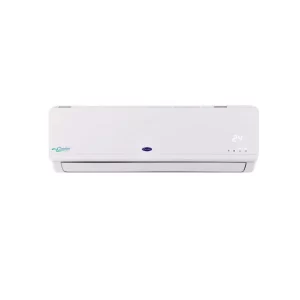

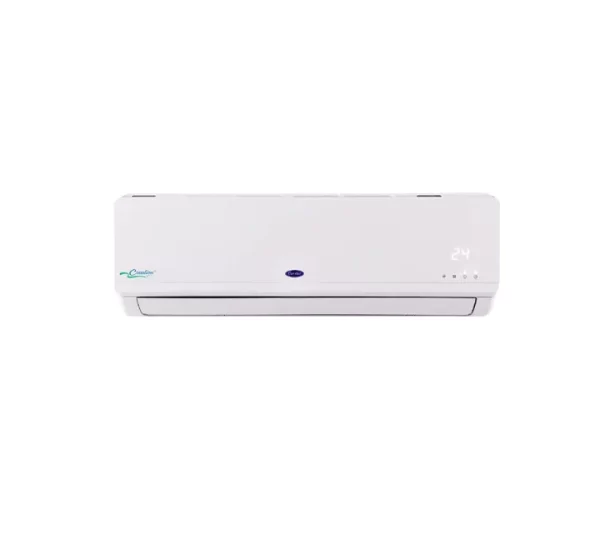

42HVBS030-703AE/38HVBS030-703AE offers a cooling capacity of 21,800 BTU/h, and a heating capacity of 7,800 W. It operates on a power supply of 220/240V~1-50Hz, 50Hz (for indoor and outdoor units). The total system power input for cooling is 2,570 W, and for heating, it is 2,050 W. The EER is 8.48 Btu/h-W, and the COP is 3.80. Cooling current is 12.20 A, and the heating current is 9.50 A. The air filter type is flat-net/washable, providing an air flow rate of 826 / 784 / 456 / 262 CFM (Max/High/Medium/Low speed). The indoor noise level ranges from 54 dBA to 41 dBA. The net weight of the unit is 16 kg, with dimensions of 1050 x 320 x 250 mm. The pipe connection sizes (suction/liquid) are (3/8”)/(5/8”). The compressor type is Rotary, and the refrigerant used is R410A. The outdoor unit dimensions are 890 x 900 x 320 mm, with a net weight of 68 kg.
Specifications:
- Cooling Capacity (T3): 21,800 Btu/h
- Heating Capacity: 7,800 W
- Power Supply: 220-240V / 1 / 50 Hz
- Total System Power Input (Cooling): 2,570 W
- Total System Power Input (Heating): 2,050 W
- EER: 8.48 Btu/h-W
- COP: 3.80
- Cooling Current (T3): 12.20 A
- Heating Current: 9.50 A
- Air Filter Type: Flat-net / Washable
- Air Flow Rate (Max/High/Medium/Low speed): 826 / 784 / 456 / 262 CFM
- Indoor Noise Level: 54 / 47 / 41 dBA
- Net Weight: 16 kg
- Dimensions (W x H x D): 1050 x 320 x 250 mm
- Pipe Connection Size (Liquid/Suction): (3/8”)/(5/8”)
- Compressor Type: Rotary
- Refrigerant Type: R410A
- Outdoor Unit Dimensions (W x H x D): 890 x 900 x 320 mm
- Outdoor Net Weight: 68 kg
