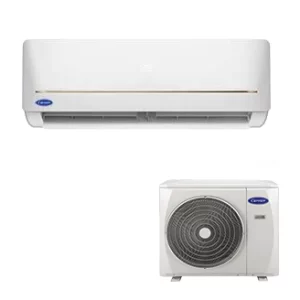

42QHA030VS/38QHA030VS mode is a 2.3-TR unit, with a rated cooling capacity of 23,200 Btu/h and a heating capacity of 8,300 W. It operates on a power supply of 220-240V, 50/60Hz, 1Ph. The total power input for cooling is 2,605 W, and for heating is 2,100 W. The EER for cooling is 8.85 Btu/W-h, and the COP for heating is 3.95. It features a washable air filter, with an indoor air flow rate of 765/645/575 CFM at high/medium/low speed. The indoor noise level is 51/48/45 dBA at high/medium/low speed. The indoor unit dimensions are 1259x282x362 mm, with a net/gross weight of 19.5 / 25.3 kg. The outdoor unit operates on the same power supply as the indoor unit, with a DC Inverter Rotary compressor and R410A refrigerant. The outdoor unit net dimensions are 46x410x810 mm, with a net weight of 64.1 kg and a gross weight of 69.3 kg. The pipe connection size for the liquid/suction line is (3/8″)/(3/4″).
Specifications:
- Unit Size (TR): 2.3
- Cooling Capacity (Btu/h): 23,200
- Heating Capacity (W): 8,300
- Power Supply (V-Ph-Hz): 220-240V, 50/60Hz, 1Ph
- Cooling Power Input (W): 2,605
- Heating Power Input (W): 8,300
- EER/Cooling (Btu/W-h): 8.85
- COP/Heating: 3.95
- Filter Type: Washable air filter
- Air Flow Rate (CFM): 765/645/575
- Indoor Noise Level (dB(A)): 51/48/45
- Indoor Unit Dimensions (mm): 1259x282x362
- Indoor Unit Net/Gross Weight (kg): 19.5 / 25.3
- Outdoor Unit Power Supply (V-Ph-Hz): 220-240V, 50/60Hz, 1Ph
- Compressor Type: DC Inverter Rotary
- Refrigerant Type: R410A
- Outdoor Unit Net Dimensions: 946x410x810 mm
- Outdoor Unit Net/Gross Weight(kg): 64.1 / 69.3
- Pipe Connection Size (Liquid/Suction): (3/8″)/(3/4″)
